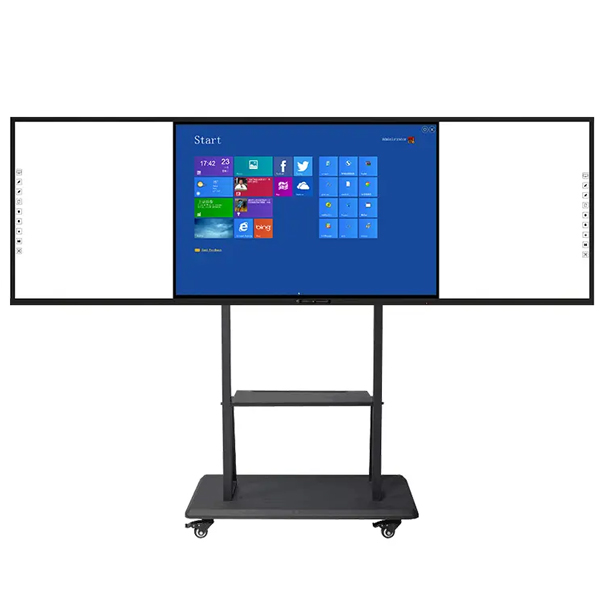

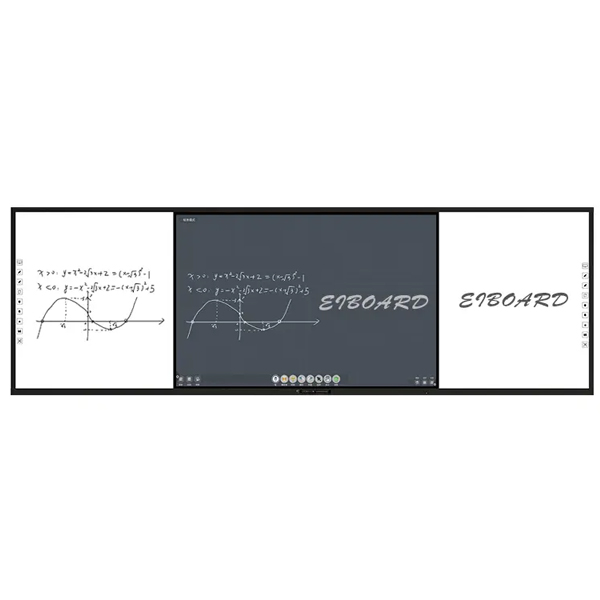

| Item Name | LED Recordable Smart Blackboard | |
| Model No. | FC-146EB | |
| Basical Info | Product Dimension | 3572.8(L)* 143(D)*1044(H) mm | 146 inch <with wall brackets> |
| 3572.8(L)* 122.81(D)*1044(H) mm | 146 inch <without wall brackets> | ||
| Main Screen | 1649.66(H)* 927.93(V)mm | 75 inch | |
| Subscreen | 933(L)* 61.5(D)*1044(H)mm *2pcs | |
| Packing Size | 1845*1190*200 mm*1 ctn; 1120*950.8*80 mm *1 ctn | |
| Weight | N.W. 82KG/G.W. 95KG. | |
| Main Screen | LED Panel Size | 75” |
| Backlight Type | LED (DLED) | |
| Resolution(H×V) | 3840×2160 (UHD) | |
| Color | 10 bit 1.07B | |
| Active Size | 1649.66*927.93mm | |
| Dot Pitch(H*W) | 0.4296*0.4296 | |
| Brightness | 350cd/m2 | |
| Contrast | 4000:1 (according to panel brand) | |
| Viewing angle | 178° | |
| Display protection | Tempered explosion-proof glass 4 mm | |
| Backlight lifetime | 50000 hours | |
| TV (Optional) | Image format:PAL/SECAM/NTSC (Optional) ; Channel storage 200 | |
| Speakers | 15W*2 / 8Ω | |
| Subscreen | Blackboard Type | Green Board,Blackboard, whiteboard as options |
| Shortcuts | 9 Shortcuts for fast convenient operation: Split screen, Blue Pen, Red Pen, New Page, Last Page, Next Page, Whiteboard Lock,Record,QR code | |
| Writing Tool | Chalk/marker, finger,pen or any non-transparent objects | |
| Dimension | 933* 61.5*1044mm * 2pcs | |
| Electrical performance | Max Power | ≤300W |
| Standby power | ≤0.5W | |
| Voltage | 110-240V(AC) 50/60Hz | |
| Touch | Touch technology | IR touch; 20 points; HIB Free drive |
| Touch Items | Main screen and sub-screen can work simultaneously. | |
| Response speed | ≤ 8ms | |
| Operation system | Support Windows7/10, Android, Mac OS, Linux | |
| Working temperature | 0℃~60℃ | |
| Operating Voltage | DC5V | |
| Power consumption | ≥0.5W | |
| I/O ports | Front ports | USB2.0*3,HDMI*1,Touch USB*1 |
| Back Ports | HDMI*1, VGA*1, RS232*1, Audio*1, MIC*1, Earphone*1, USB2.0*4, RJ45 IN *1, RJ45 OUT *1, OPS Slots*1 | |
| Function buttons | 8 buttons in front bezel: Power, Source,Menu,Volume+/-,Home, PC,Eco | |
| Accessories | Power cable*1 pcs; Touch Pen*1 pcs; Remote Controller*1 pcs; QC card*1 pcs; Instruction manual*1 pcs ; Warranty card*1 pcs; Wall brackets | |
